Ordering Information
Users should be based on the products listed in this catalog to select and place order. As otherwise required or on the following changes should be stated in the contract.
1. Product type and valve specifications DN
2.The valve pressure rating (Metric with nominal pressure PN, Anglo- American system on LB, the Japanese system of K-level)
3.The valve structure length performance standards
4.Connecting flange standards and seal form
5.Weld end dimension implementation standards and pipe No.
6.Requirement of gear operator (including transfer mode and its arrangement mode)
7.Requirement of electric actuator(including model and its transmission torque)
8.The main material (including body, bonnet , trim and fasteners)
9.Temperature ℃
10.Medium
11.Sealing vice materials’ matching
12.Requirements of fire protection ,anti-static and fire-resistant
13. Greasing or sewage and venting required
14.The other statement(such as structural features,application specification, flaw detection, etc.)
Installation and maintenance instructions
1.Valves should be stored in dry and ventilated room, the channel to be blocked at both ends;
2.Valves must be turned off during the suspension period and the storage, to ensure in good seal condition;
3.Valves should be checked carefully on the models, specifications and technical performance and ensure its according with the requirements before installation, also make clear the valve cavity and the appearance of dirt, sediment and rust;
4.The opening and closing should be turned by handwheel, not the help of other auxiliary lever;
5.This valve should be kept clean during using,and the stem threaded portion should be regularly lubricated.
| Model Description | Technical Specifications | Main Parts Material | Application and Maintenance |
|---|
|
Code |
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|
|
Driving manner |
Electro magnetic driving |
Electro magnetic -hydraulic driving |
Electro hydraulic driving |
Worn gear driving |
Spur gear transmission |
Bevel gear transmission |
Hydraulic Driving |
Pneumatic Driving |
Pneumatic-hydraulic driving |
Electric driving |
|
|
Connection type |
|
Female thread |
Male thread |
|
Flange |
|
Welding |
Wafer |
Nipping fork |
Tube end |
|
|
Type code |
Design feature |
||||||||||
|
Check valve |
H |
|
Lift type |
Swing type |
|
|
|
||||
|
|
Full bore type |
Vertical type |
Angle type |
Single disc type |
Multi-disc type |
Double-disc type |
Butterfly Check valve |
|
|
||

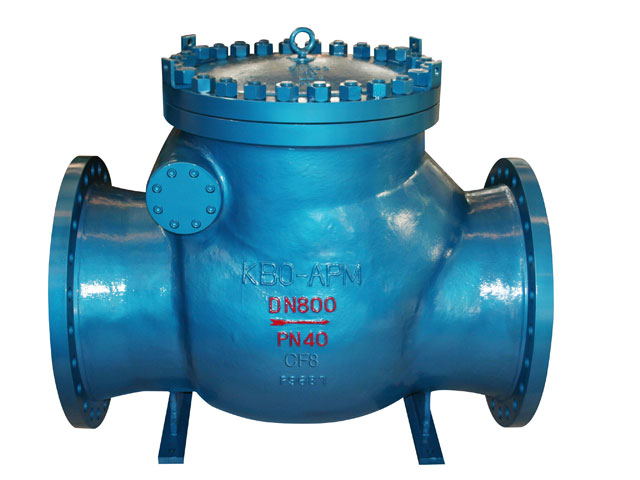

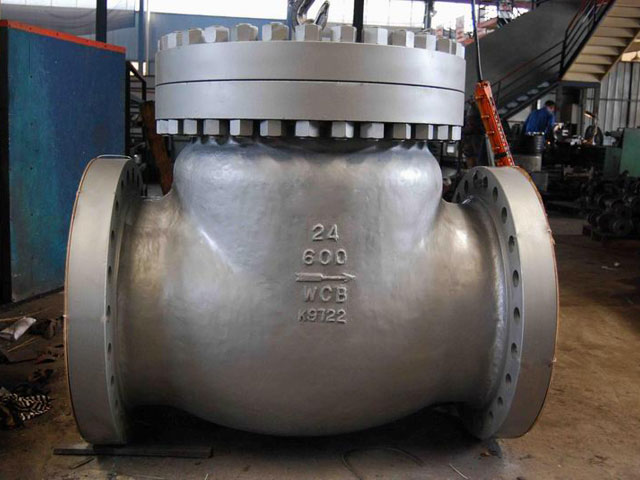

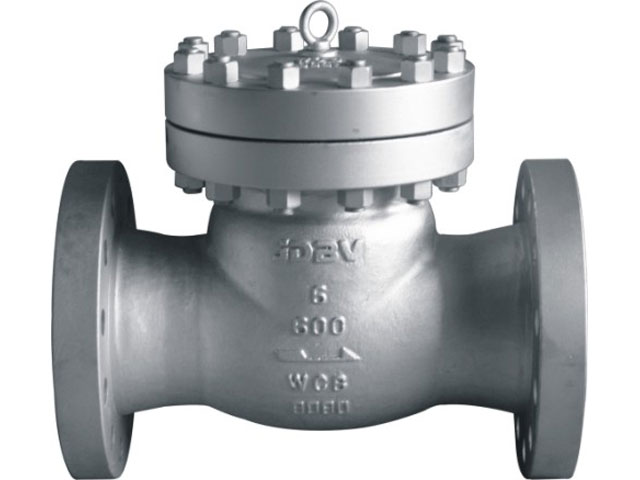

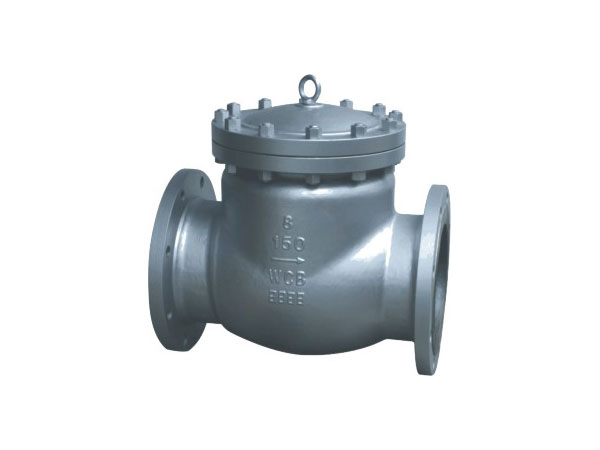

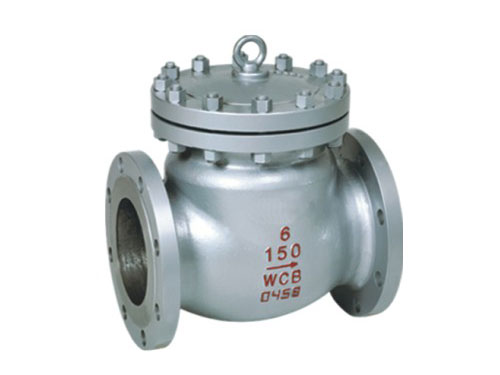

Length of structure:ASMEB16.10/API 6D
Flange connecting end:ASME B16.5/ASME B16.47
Butt welding connecting end:ASME B16.25
Wall thickness:ASME B16.34
Inspection and test:API 598 /API 6D
Pressure and temperature rating:ASME B16.34
Product scope:NPS 2″~NPS 48″,CL150~CL2500
Main body material:WCB､LCB､WCC､WC6､WC9､CF8､CF8M､CF3､CF3M､A890 4A etc.
|

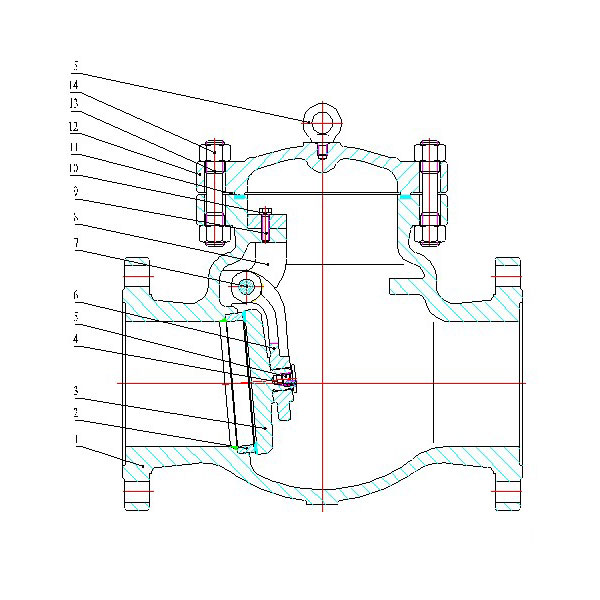

No. |
Parts Name |
Materials |
||
|
Carbon Steel |
Low Tem. Steel |
Stainless Steel |
||
|
1 |
Body |
ASTM A216-WCB |
ASTM A352-LCB/LCC |
ASTM A351-CF8/CF8M |
|
2 |
Seat |
ASTM A105+13%Cr |
ASTM A350-LF2+STL6 |
ASTM A182-F304/F316 |
|
3 |
Jumper plate |
ASTM WCB+13%Cr |
ASTM A350-LF2+STL12 |
ASTM A182-F304/F316 |
|
4 |
Binding screw |
ASTM A193-B7/B7M |
ASTM A320 L7 |
ASTM A193-B8/B8M |
|
5 |
Disc nut |
ASTM A182-F6a |
ASTM A182-F304 |
ASTM A182-F304/F316 |
|
6 |
Rocker |
ASTM A216-WCB |
ASTM A352-LCB/LCC |
ASTM A351-CF8/CF8M |
|
7 |
Hinge pin |
ASTM A182-F6a |
ASTM A182-F304 |
ASTM A182-F304/F316 |
|
8 |
Draw bar |
ASTM A216-WCB |
ASTM A352-LCB/LCC |
ASTM A351-CF8/CF8M |
|
9 |
Hexagon bolt |
ASTM A193-B7/B7M |
ASTM A320 L7 |
ASTM A193-B8/B8M |
|
10 |
Gasket |
Carbon steel |
ASTM A182-F304 |
ASTM A182-F304 |
|
11 |
Gasket |
304+Graphite |
304+Graphite |
304+Graphite/316+Graphite |
|
12 |
Bonnet |
ASTM A216-WCB |
ASTM A352-LCB/LCC |
ASTM A351-CF8/CF8M |
|
13 |
Bolt |
ASTM A193-B7/B7M |
ASTM A320 L7 |
ASTM A193-B8/B8M |
|
14 |
Nut |
ASTM A194-2H/2HM |
ASTM A194 4 |
ASTM A194-8/8M |
|
15 |
Lifting lug |
ASTM A193-B7/B7M |
ASTM A320 L7 |
ASTM A193-B8/B8M |
Ordering Information
Users should be based on the products listed in this catalog to select and place order. As otherwise required or on the following changes should be stated in the contract.
1. Product type and valve specifications DN
2.The valve pressure rating (Metric with nominal pressure PN, Anglo- American system on LB, the Japanese system of K-level)
3.The valve structure length performance standards
4.Connecting flange standards and seal form
5.Weld end dimension implementation standards and pipe No.
6.Requirement of gear operator (including transfer mode and its arrangement mode)
7.Requirement of electric actuator(including model and its transmission torque)
8.The main material (including body, bonnet , trim and fasteners)
9.Temperature ℃
10.Medium
11.Sealing vice materials’ matching
12.Requirements of fire protection ,anti-static and fire-resistant
13. Greasing or sewage and venting required
14.The other statement(such as structural features,application specification, flaw detection, etc.)
Installation and maintenance instructions
1.Valves should be stored in dry and ventilated room, the channel to be blocked at both ends;
2.Valves must be turned off during the suspension period and the storage, to ensure in good seal condition;
3.Valves should be checked carefully on the models, specifications and technical performance and ensure its according with the requirements before installation, also make clear the valve cavity and the appearance of dirt, sediment and rust;
4.The opening and closing should be turned by handwheel, not the help of other auxiliary lever;
5.This valve should be kept clean during using,and the stem threaded portion should be regularly lubricated.
